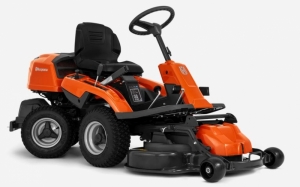

HUSQVARNA R 214TC Comfort Edition Ride on Mower
R 214TC Comfort Edition
Versatile Rider with excellent driving comfort
Features
Adjustable steering wheel
Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.
Hour meter
Hour meter for easy control of operating time and service and maintenance intervals.
Four large wheels
16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.
Easy-access controls
Controls are easy accessible for effective and ergonomic handling.
Pedal-operated hydrostatic transmission
Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.
Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.
Storage compartment
The open left storage makes it easy to access your items while mowing.
Bottle holder
Convenient bottle holder for refreshments.
Unique articulated steering
The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.
Combi cutting deck with BioClip® (mulching)
BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.
Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.
Versatile usage
A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.
Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.
Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play.
Specification
Engine |
R 214TC Comfort Edition RIDER C94
Art no: 970 56 91‑01
|
Power/fuel type |
Petrol |
---|---|
Net power at preset rpm Energy1 |
12 kW |
Net power at preset rpm |
2,900 rpm |
Motor/engine manufacturer |
Husqvarna |
Engine name |
HV 586AE |
Cylinder displacement |
586 cm³ |
Cylinders |
2 |
Engine cooling |
Air |
Engine lubrication type |
Pressure with Oilfilter |
Oil filter |
Yes |
Emission | |
Exhaust emissions (CO₂ EU V)2 |
778 g/kWh |
Battery | |
Battery capacity |
24 Ah |
Battery type |
Lead-Acid |
Battery pack weight |
7.2 kg |
Battery manufacturer |
Global |
Cutting deck | |
Uncut circle |
30 cm |
Cutting width, min |
94 cm |
Cutting width, max |
94 cm |
Cutting height min |
25 mm |
Cutting height max |
75 mm |
Blade engagement |
Automatic |
Dimensions | |
Tyre dimensions, front |
170/60-8 |
Tyre dimensions, rear |
170/60-8 |
Wheelbase |
88.7 cm |
Ground clearance |
105 mm |
Base machine, length |
223 cm |
Base machine, width |
100 cm |
Base machine, height |
107 cm |
Gross weight towed3 |
110 kg |
Weight (excl. cutting equipment) |
208 kg |
Drive system | |
PTO (Power Take Off) |
Belt-driven |
Transmission type |
Hydrostatic |
Drive method |
Dual pedal-operation |
Speed forward max |
9 km/h |
Speed reverse max |
6 km/h |
Equipment | |
Seat suspension |
Yes |
Seat type |
Comfort |
Hour meter type |
Digital |
Seat material |
PU |
Seat back height |
High |
Foldable seat |
Yes |
Steering wheel type |
Ergonomic |
Parking brake, type |
Disc |
Vibration | |
Vibration level steering wheel |
1.9 m/s² |
Vibration level seat |
0.29 m/s² |
Sound and noise | |
Sound pressure level at operators ear |
83 dB(A) |
Sound power level, guaranteed (LWA) |
98 dB(A) |
Sound power level, measured |
97 dB(A) |
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
- 3Gross weight towed: For 2-wheel drive machines, towing of trailer is only allowed in dry conditions and on flat surfaces. Be aware that towing of trailer may shorten the life time of the Rider's transmission.
